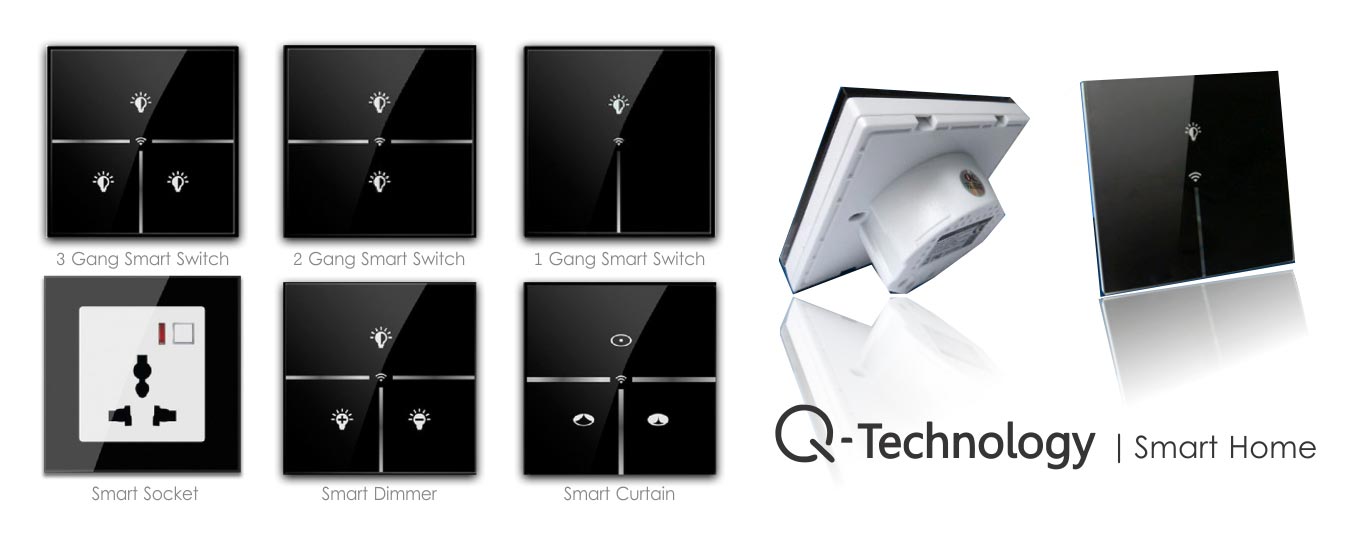

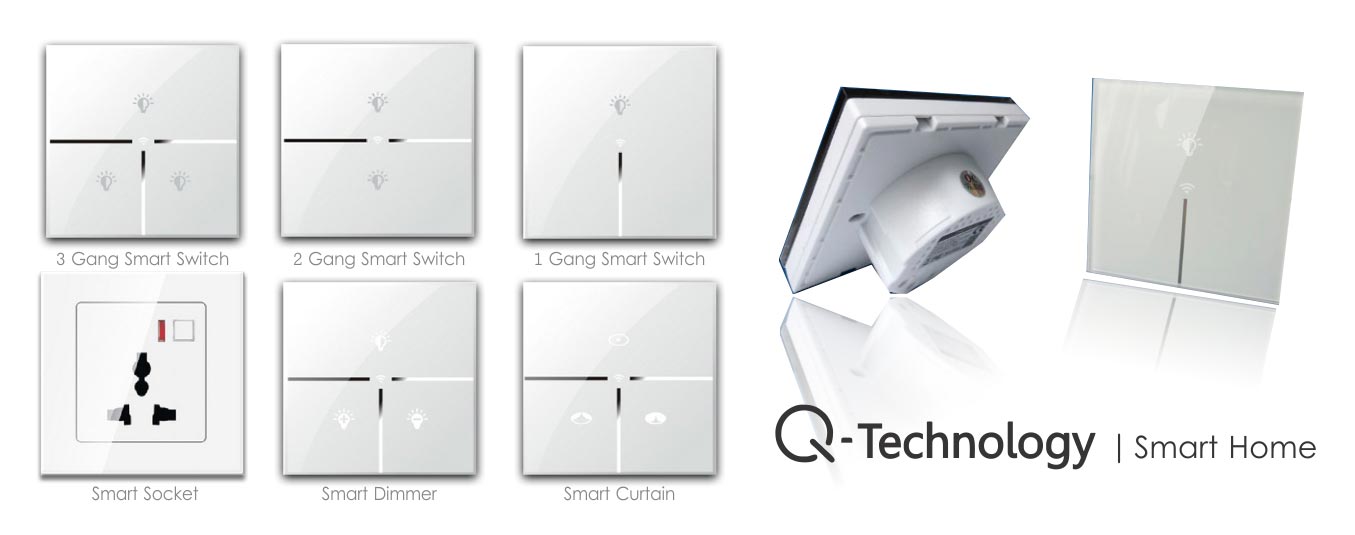

Smart Home adalah Automatisasi Perangkat listrik dan elektronik sehingga dapat di akses remote melalui perangkat SmartPhone dengan menggunakan WiFi. Contoh Penggunaan Smart Home: Lightning control,Audio/Video IR Distribution, Temperatur Control dan lainnya
Lihat Detail

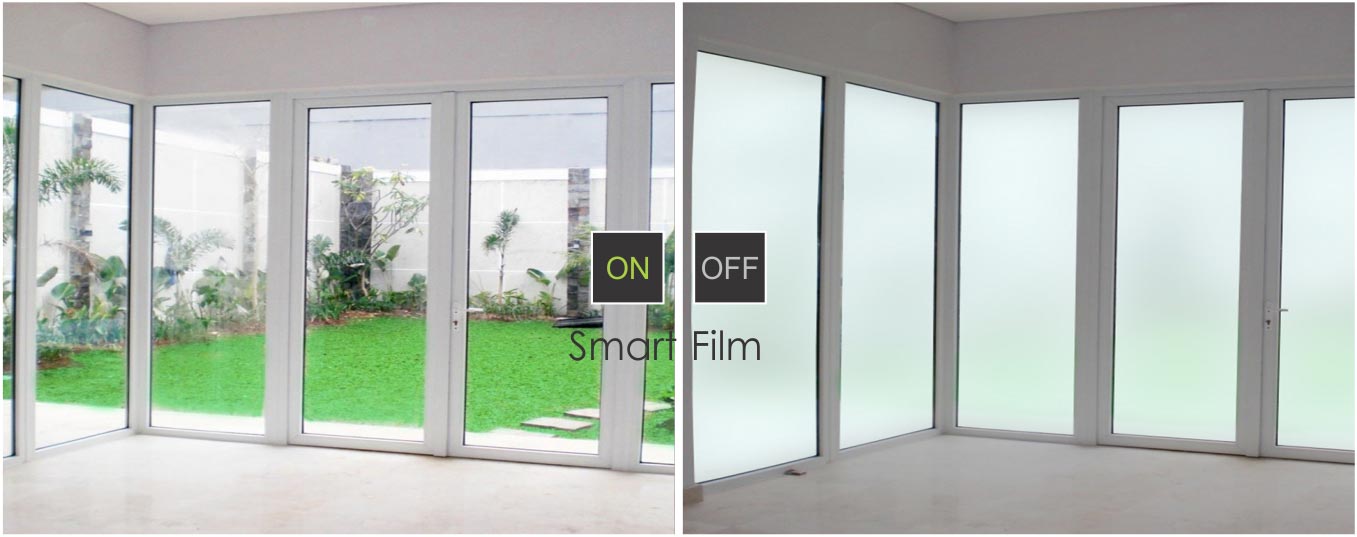

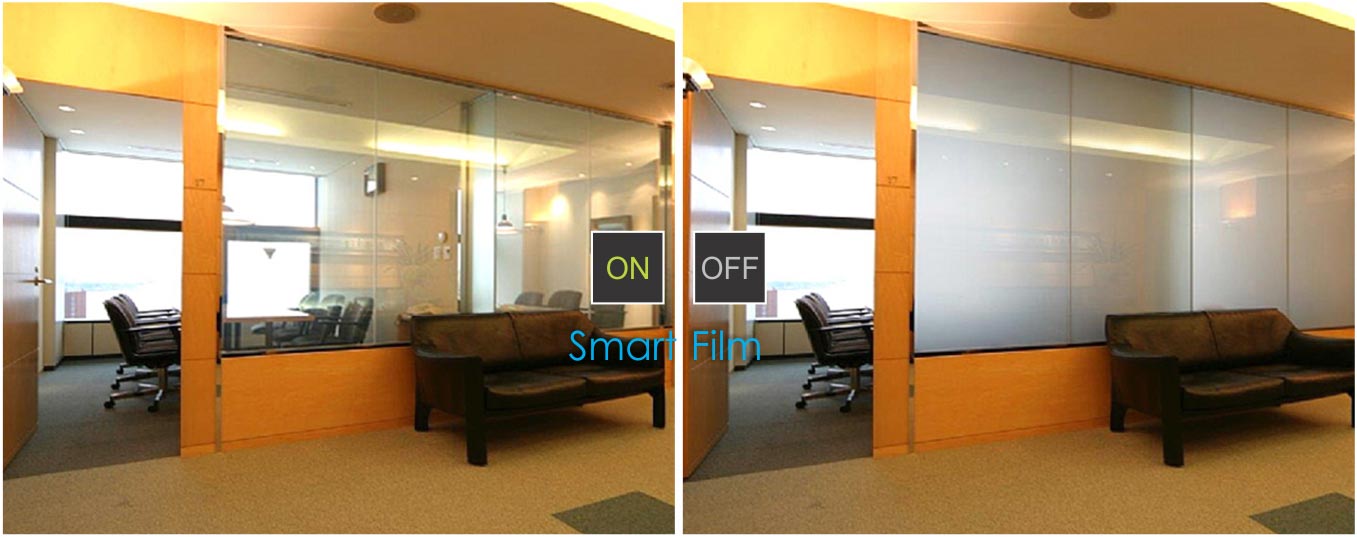

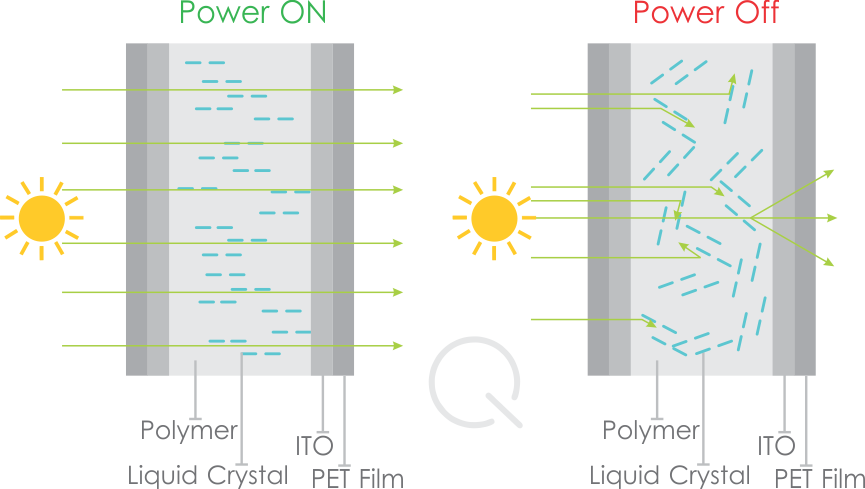

Smart Film atau yang biasa disebut Switchable film merupakan lapisan yang dapat mengatur transmisi cahaya dari opaque (buram) menjadi terang (clear), selain digunakan sebagai alasan privasi, Smart Film juga berfungsi sebagai pelindung dari sinar UV dan Infra Red.
Lihat Detail
Selain menyediakan Smart Home dan Smart Film, kami juga memiliki kompeten dibidang network solution, Q-Tech menyediakan jasa Integrasi jaringan, desain kebutuhan jaringan, dan segala hal yang berkaitan dengan jaringan untuk kebutuhan usaha anda.
Lihat Detail

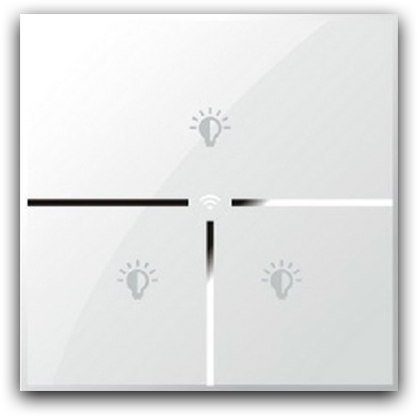

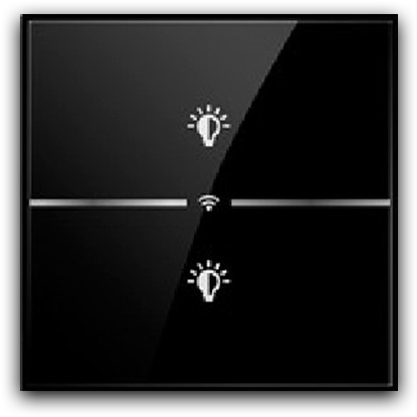

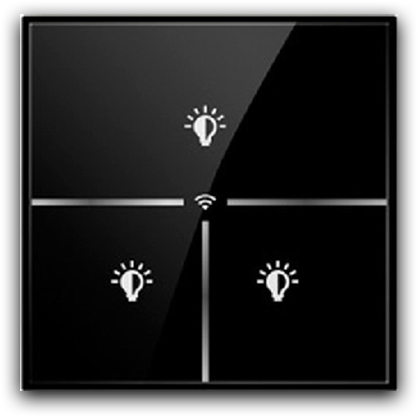

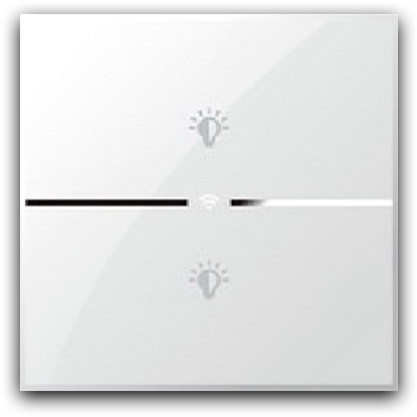

| Panel: | Tempered crystal glass |
| Rated voltage: | AC 100-250V 50/60Hz |
| Rated current: | 3A/load |
| Load type: | Incandescent lamp, energy saving lamp, fluorescent lamp, etc |
| GSSS standard: | 802.1b/g |
| RF performance: | Transmission power +20dBm, 11Mbps(CCK). Receiver sensitivity -89dBm, 11Mbps(CCK) |
| WiFi Safe Mode | WEP, WPA/WPA2 (AES and TKIP for Personal) |
| Device life time | Over 1,000,000 times use |
| Rated load: | Resistive load 500W Inductive load 200W |
| Operating temperature: | -25 degree to +60 degree |
| Relative humidity: | <95% |

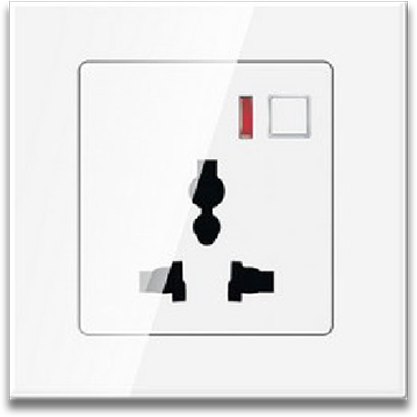

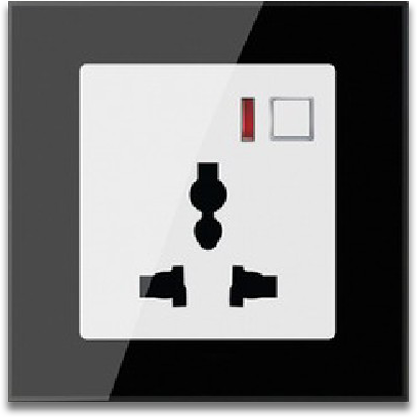

| Panel: | Tempered crystal glass |
| Rated voltage: | AC 100-250V 50/60Hz | Max. Current: | 10A |
| Standby Current: | <60uA |
| Standbay Power: | <0.016W |
| GSSS standard: | 802.1b/g |
| RF performance: | Transmission power +20dBm, 11Mbps(CCK) Receiver sensitivity -89dBm, 11Mbps(CCK) |
| WiFi safe mode: | WEP, WPA/WPA2 (AES and TKIP for Personal) |
| Operating temperature: | 0 degree to +60 degree |
| Relative humidity: | <95% |

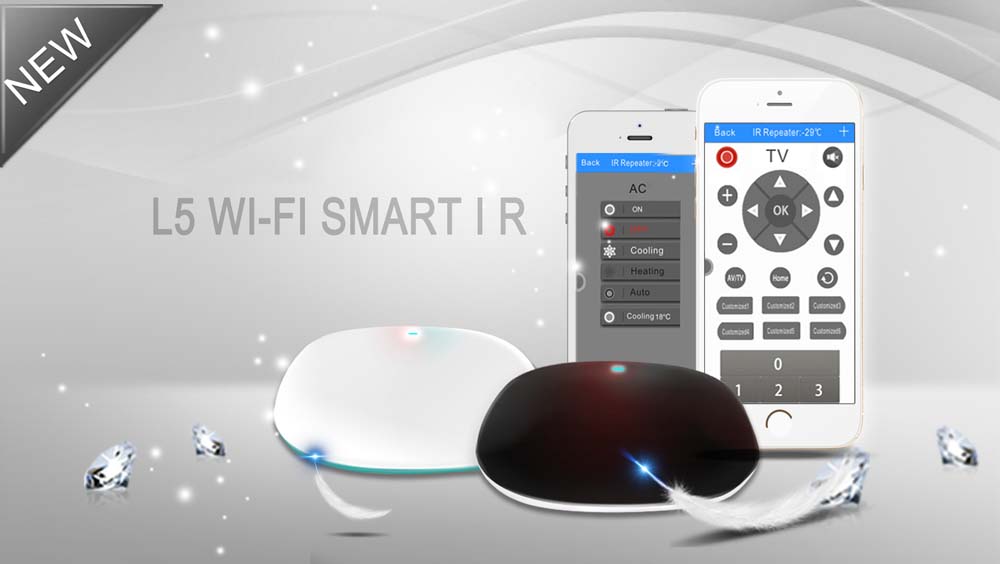

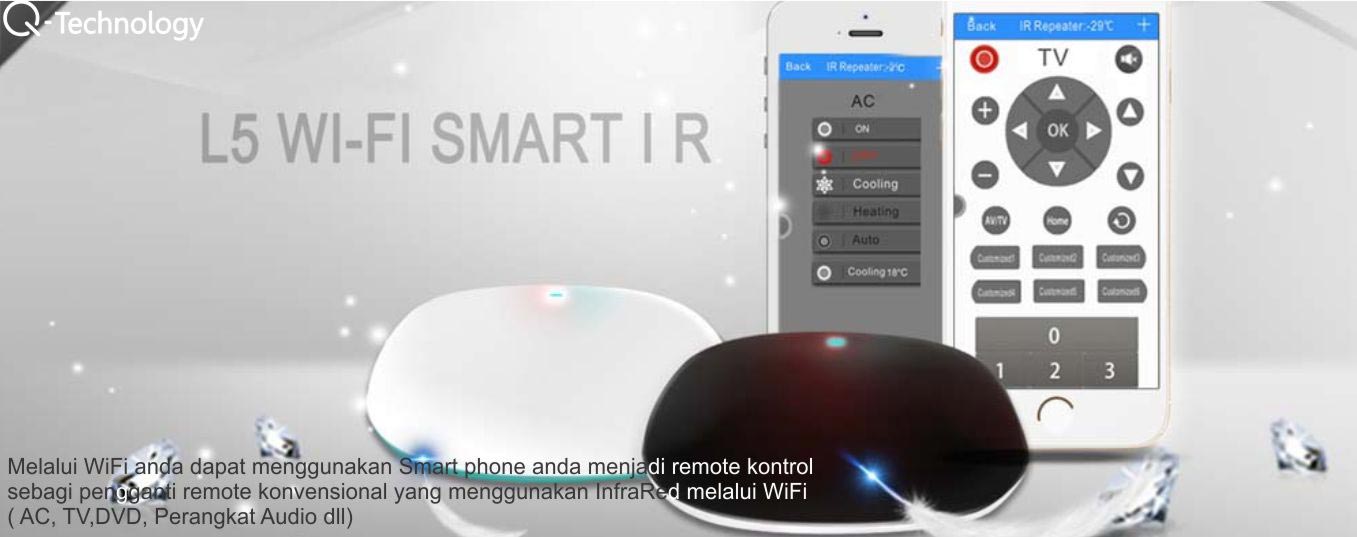

| Input Power: | DC 5V |
| Input voltage: | AC 100-250V 50/60Hz |
| Standby Current: | <60uA |
| Standbay Power: | <0.016W |
| Wireless type: | 802.1b/g/n |
| Wireless Consumption : | ≤0.5W |
| RF Transmission: | 38-36KHz |
| WiFi safe mode: | WEP, WPA/WPA2 (AES and TKIP for Personal) |
| Operating temperature: | -20 degree to +60 degree |
| Relative humidity: | <80% |

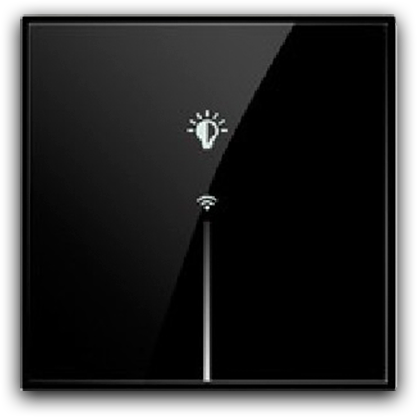

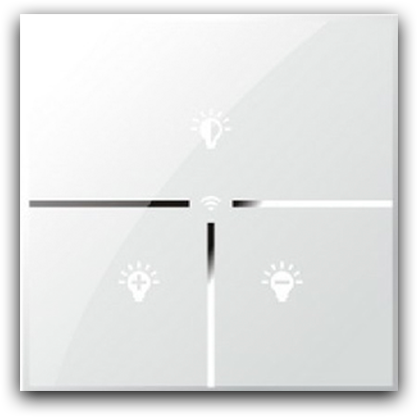

| Panel: | Tempered crystal glass |
| Rated voltage: | AC 100-250V 50/60Hz |
| Rated current: | 2A/load |
| Load type: | Incandescent lamp, energy saving lamp |
| GSSS standard: | 802.1b/g |
| RF performance: | Transmission power +20dBm, 11Mbps(CCK). Receiver sensitivity -89dBm, 11Mbps(CCK) |
| WiFi Safe Mode | WEP, WPA/WPA2 (AES and TKIP for Personal) |
| Device life time | Over 1,000,000 times use |
| Operating temperature: | -25 degree to +60 degree |
| Relative humidity: | <95% |

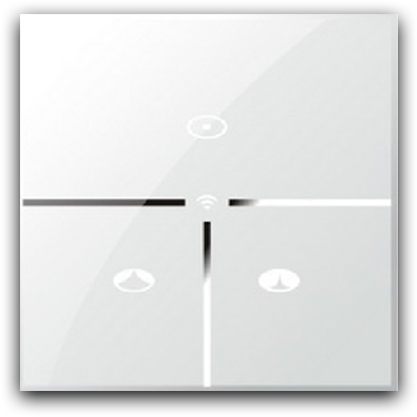

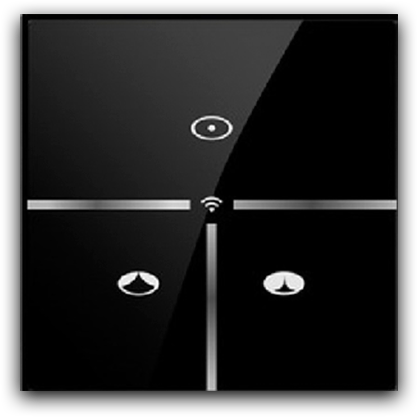

| Panel: | Tempered crystal glass |
| Rated voltage: | AC 100-250V 50/60Hz |
| Rated current: | 3A/load |
| Load type: | Curtain Motor |
| GSSS standard: | 802.1b/g |
| RF performance: | Transmission power +20dBm, 11Mbps(CCK). Receiver sensitivity -89dBm, 11Mbps(CCK) |
| WiFi Safe Mode | WEP, WPA/WPA2 (AES and TKIP for Personal) |
| Rate Load: | 300 W |
| Operating temperature: | -25 degree to +60 degree |
| Relative humidity: | <95% |
| Specificaton | |
|---|---|
| Thickness: | 0.4mm |
| Max Size | 1400*3000mm |
| Available Color | Milky White & Light Grey |
| Power Consumption | <5W/M² |
| Switching Time | On to Off : <10ms <200ms |
| Enviromental Parameter | |
| Working Temperature | –30°C~ 70°C |
| Storage temperature | –40°C~ 90°C |
| Optical Parameter | ON | OFF |
|---|---|---|
| Parallel Light Transmission | >96% | <10% |
| Visible Light Transmission | >75% | <5% |
| Visual Angel | 150% | |
| UV Blocking | ≥99% | ≥99% |
| Fog Degree | <7% | >95% |
| Electrical Properties : ON | ||
| Operating Voltage | 48/60V AC | |
| Current | 150 mA/sqm | |
| Authorized Reseller I | |
|---|---|
| Name : | YEZHA | Address : | Jln Tomang Raya, Jakarta Barat |
| Phone / WA : | 083 83 83 83 430 |
| E-Mail : | yesayapitra[at]gmail.com |
| Authorized Reseller II | |
|---|---|
| Name : | Edward Prasetya | Address : | Villa Tomang Mas, Duri Kepa, Jakarta Barat |
| Phone : | 0817 29 55 33 |
| E-Mail : | edward.b.prasetya[at]gmail.com |
| Authorized Reseller III | |
|---|---|
| Name : | EDO | Address : | Alam Sutra. Tangerang |
| Phone : | 0877 8055 8788 |
| E-Mail : | getsedo[at]yahoo.com |
Download our lastest app
| Smart Home Application | Android | iOS |
| Smart Home Manual Book | Smart_Home.pdf | Smart_Home_Catalogue.pdf |
